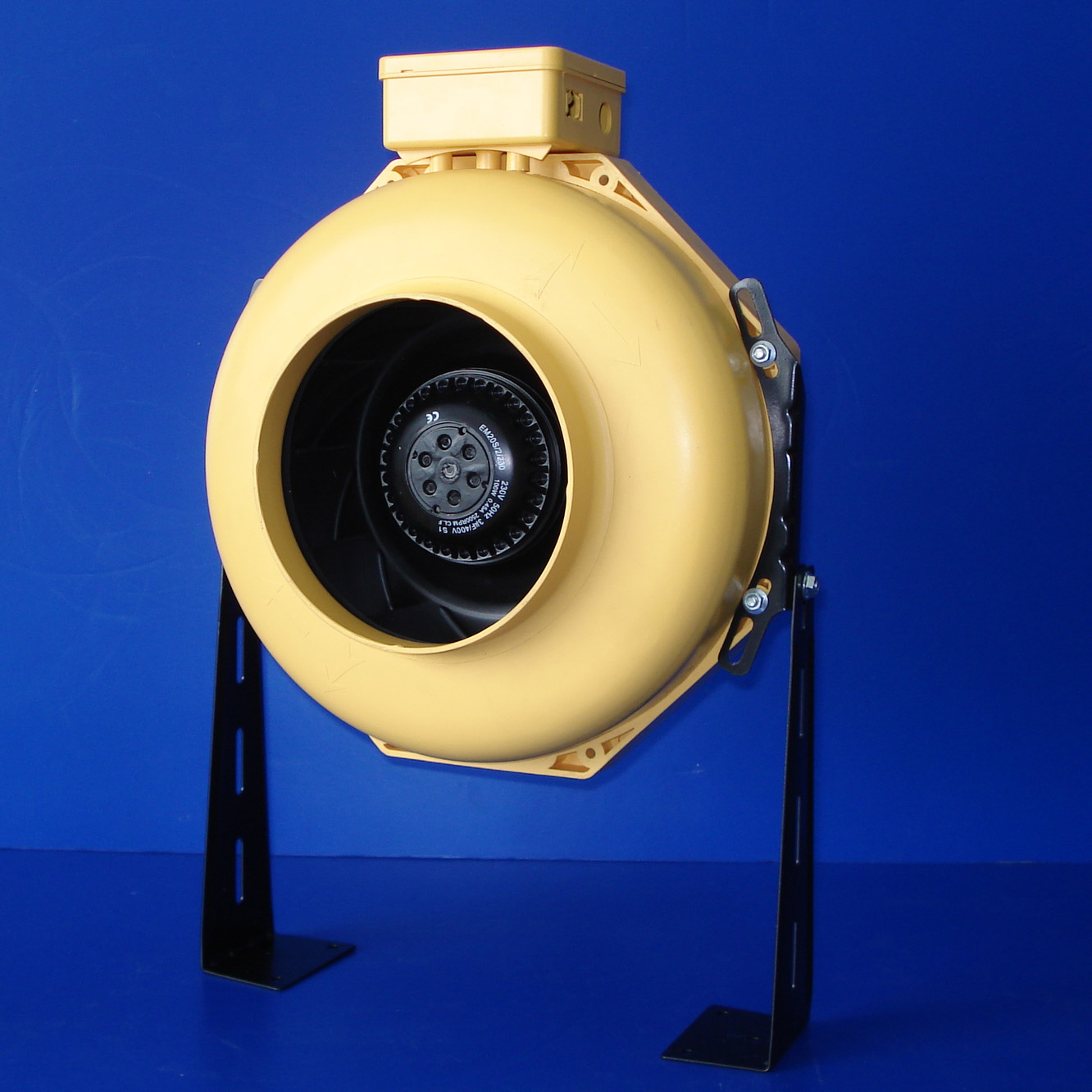

  • ABS (Plastic) Inline Duct Fans ---Model¡¾HCGF-Y¡¿

    • Product Description :

      Housing  Material:  ABS / Plastic

      Typical sizes available:  Φ100;  Φ125;  Φ150;  Φ160;  Φ200;  Φ250;  Φ305;  Φ315
      Colour available: Yellow £¨Other colour : black, white, grey£¬green,  etc£©
      It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
      The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically.

      The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.

      Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.


      Specific technical parameter:

      Model
      Voltage
      Frequency
      Power
      Rotate
      AirFlow
      Pressure
      (HCGF-Y)
      (V )
      (HZ)
      (W)
      (R/Min)
      (M3/H)
      (Pa)
      Φ100
      110~230
      50/60
      61
      2450
      286
      336
      Φ125
      110~230
      50/60
      64
      2550
      368
      310
      Φ150
      110~230
      50/60
      97
      2550
      591
      388
      Φ160
      110~230
      50/60
      125
      2500
      666
      357
      Φ200
      110~230
      50/60
      145
      2550
      1088
      569
      Φ250
      110~230
      50/60
      158
      2450
      1147
      541
      Φ305
      110~230
      50/60
      215
      2450
      1813
      653
      Φ315
      110~230
      50/60
      222
      2450
      1831
      660
